Gooseneck Arms for Microscope and Inspection Lighting

Master your quality control with shadow-free illumination. These micro-adjustable goosenecks feature a zero-rebound design, allowing for the incredibly fine positioning required for microscope work and electronic component inspection.
Send Your Inquiry Now
Dual-Arm Flexible Gooseneck for Microscope & Precision Inspection Lights - Magnified Detail of Standard Threaded Interfaces on Both Ends

Image Gallery

Dual-Arm Flexible Gooseneck for Microscope & Precision Inspection Lights - Explosion Proof Compliant Gooseneck for Hazardous Zone Lighting

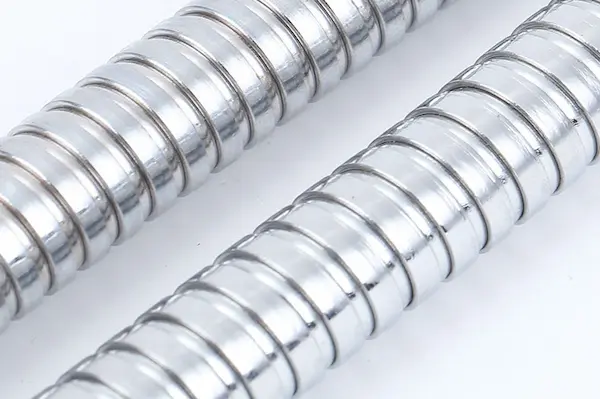

Dual-Arm Flexible Gooseneck for Microscope & Precision Inspection Lights - Stay Put Flexible Arm for Laser Cutting Machine Illumination
Dual-Arm Flexible Gooseneck for Microscope & Precision Inspection Lights - task light gooseneck tube

Technical Specifications

FeatureSpecification
MaterialHigh-Grade Stainless Steel / Carbon Steel
Surface FinishBlack Powder Coated, Chrome, Silicone Sleeved, Heat Shrink
Outer Diameter5mm - 20mm (Customizable)
Flexibility360° Full Range Positioning, Stay-in-Place Design
Thread TypeM4, M6, M8, 1/4-20, or Custom Male/Female
Load CapacityFrom 100g to 5kg+ based on stiffness

OEM/ODM Customization Workflow

Consultation

Technical requirements & load analysis with our engineering team

Prototyping

3–7 day rapid sample production with precision CNC

Testing

Stiffness & durability validation per industry standards

Production

Mass production with CNC precision end-fitting integration

Why Choose Our Customization Service?

ISO 9001 certified manufacturing process
Dedicated technical support throughout project
Flexible MOQ (Minimum Order Quantity)
Competitive pricing for volume orders

Technical Specifications Diagram

Dual-Arm Flexible Gooseneck for Microscope & Precision Inspection Lights - Industrial flexible Goosenecks for Lighting

Inspection and Detector Gooseneck Details to Confirm

For detector probes and inspection lights, we confirm probe or lamp weight, required reach, bend radius, cable path, end fitting, and the environment where the arm will be used.
Holding Force and Reach: The arm needs enough stiffness to hold the sensor, probe, or light, but it still has to be adjustable in the field. We tune diameter, length, and core stiffness around the actual tool weight and reach.
Custom Diameter, Thread, and Cable Path: Outer diameter, length, stiffness profile, and thread type can be adjusted around CAD files, sample parts, or the detector housing requirement.
Extreme Environment Durability: Built to survive the toughest conditions. Whether you need 24-48 hour salt-spray tested stainless steel for marine environments, or UV-resistant/dustproof PVC coatings for industrial machinery, our surface treatments guarantee long-lasting performance.
Rapid Prototyping & R&D Support: Time-to-market is critical. We support your R&D phase with rapid prototyping, delivering custom functional samples within 3 to 7 business days. We accept flexible MOQs for trial orders, scaling cleanly into high-volume mass production.

Frequently Asked Questions

Are your industrial lighting goosenecks resistant to machine oils and coolants?
Yes. For machining environments, we offer specialized oil-resistant coatings and PVC/Silicone sleeves. These protect the internal spring steel from corrosive cutting fluids and coolants used in CNC centers, preventing rust and maintaining the arm's flexibility over years of heavy use.
Will the gooseneck arm vibrate or sag under the weight of a heavy industrial LED lamp?
Not at all. We engineer our industrial series with a reinforced high-carbon steel core specifically designed for heavy-duty task lights. By matching the outer diameter (OD) and stiffness to your lamp’s weight, we guarantee stable holding performance, even in high-vibration environments like textile mills or stamping plants.
Can these gooseneck supports be used in high-temperature or outdoor settings?
Absolutely. For high-power LEDs that generate significant heat, we provide aluminum-core or chrome-plated versions that assist in thermal dissipation. For outdoor use, our IP-rated silicone-sleeved goosenecks are UV-resistant and waterproof, protecting against rain, dust, and extreme temperature fluctuations.
What mounting options are available for industrial workstation integration?
We offer versatile mounting solutions to fit any industrial setup, including:

Threaded Ends: M8, M10, or 1/4-20 for direct machine mounting.

Magnetic Bases: For temporary attachment to ferrous metal surfaces.

G-Clamps: For secure, non-destructive attachment to workbenches and assembly lines.

Flange Bases: For permanent screw-down installation on control panels or desks.
Can I route the electrical wiring through the center of the flexible arm?
Yes, our hollow-core design is a standard feature for lighting applications. This allows for safe internal cable routing (up to a specific gauge), protecting the wires from external mechanical damage, heat, and oil exposure while maintaining a clean, professional look for your equipment.
What is the typical lifespan of a gooseneck arm under frequent adjustment?
Our industrial goosenecks undergo rigorous fatigue testing, rated for thousands of bending cycles without losing their "stay-put" tension. The high-quality internal friction wire ensures consistent torque, so the arm remains as reliable on day 1,000 as it was on day 1.
Can you provide custom lengths or specific colors to match our machinery?
As a dedicated OEM manufacturer, we can customize lengths from 50mm to over 1000mm. For branding and aesthetics, we offer various finishes including Matte Black Powder Coating, Polished Chrome, and custom-colored Silicone Sleeving to match your corporate identity or machine color scheme.

Ready to Optimize Your Antenna Mounting Solution?

Get in touch with our engineering team for technical specifications, samples, or custom OEM/ODM solutions.
