Lighting Arms Built for Daily Use

Flexible Gooseneck Arms for Reliable Lamp Positioning

A lamp arm has one job: stay where the operator puts it. We manufacture metal gooseneck arms for task lights, exam lights, desk lamps, and OEM fixtures that need repeatable positioning without drift.
Trusted by 500+ Global Lighting Brands
500+
Global Brands
15+
Years Experience
50M+
Units Produced
Product Series

Gooseneck Lighting Options by Use Case

Different lamps fail in different ways: vibration near machines, frequent cleaning in clinics, or visible finishes in retail spaces. These are the common lighting arm builds customers ask us to make.

Flexible Gooseneck Lamp Solutions

View All Products

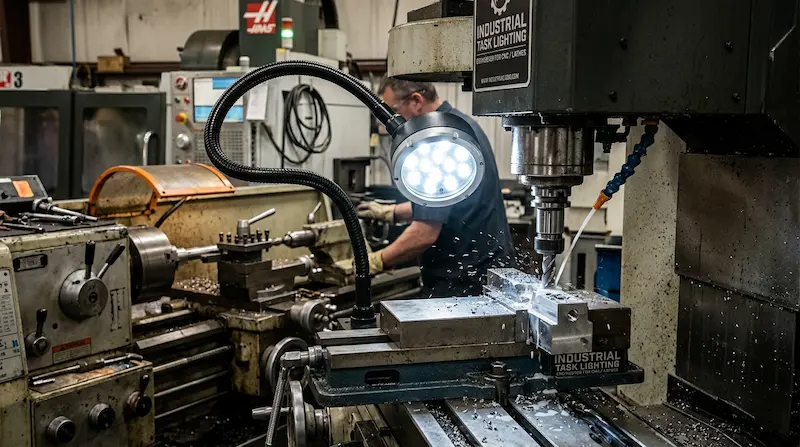

Industrial gooseneck working light
Gooseneck  Working Light

Industrial Task Lighting

Used around CNC machines, lathes, and inspection benches where vibration is part of the shift. We size the tube and base so the light can be adjusted often without slowly dropping.
MORE DETAILS

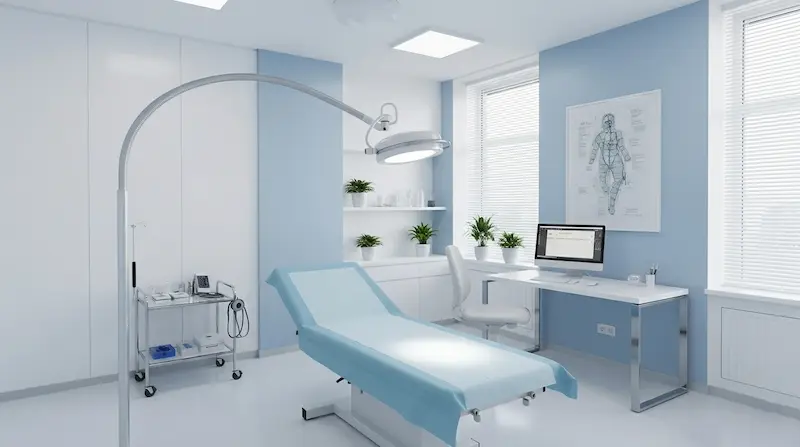

Medical flexible gooseneck lamp holder
Medical Flexible Gooseneck Lamp

Medical & Examination Lights

For exam rooms and clinics, customers usually care about smooth adjustment, easy-clean sleeves, and a lamp head that does not creep during use.

MORE DETAILS

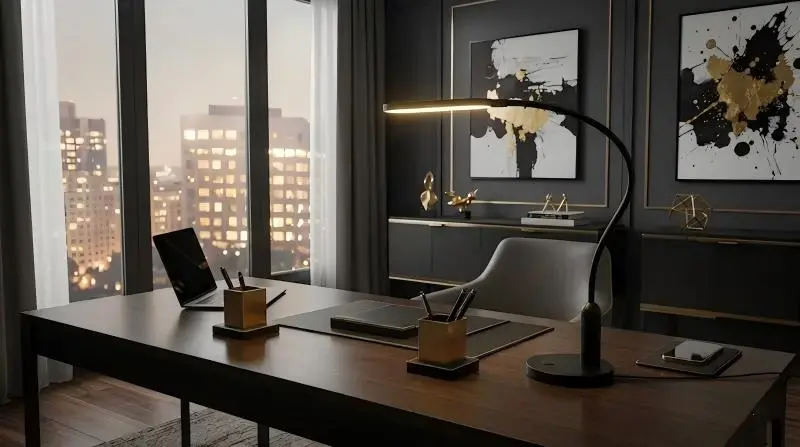

Flexible LED desk lamp with gooseneck arm
Flexible Desk Lamp

Commercial & Decorative

For desks, hotels, and retail counters, the finish matters as much as the hold. Chrome, anodized, or powder-coated tubes can be matched to the fixture design.

MORE DETAILS

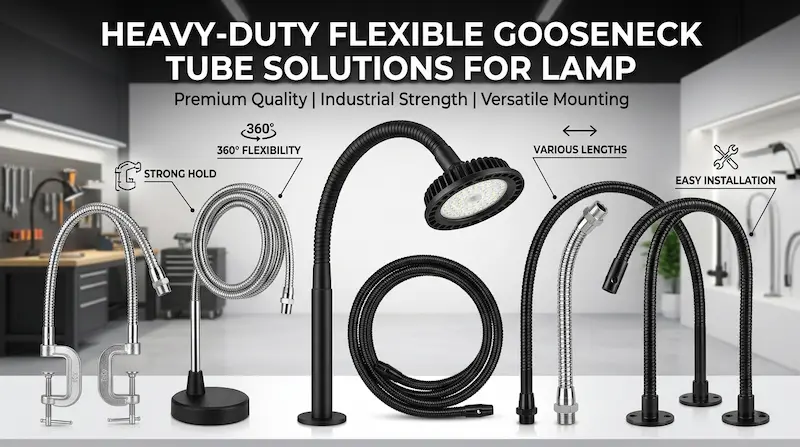

Heavy-duty flexible gooseneck arm for lighting
Heavy-Duty Gooseneck Arm

Heavy-Duty Lamp Arms

For larger lamp heads or long reaches, we build with a larger diameter tube and reinforced ends. Typical projects go up to 3.5 kg, depending on length and mounting angle.


MORE DETAILS
What We Check

Built Around the Lamp Head, Not a Catalog Guess

Before recommending a diameter, we look at lamp weight, arm length, mounting angle, vibration, and how often the user will reposition it. That is usually where good and bad gooseneck arms separate in real use.
Material Science
Stay-Put Guarantee
Surface Treatment
Flexible gooseneck metal tubing construction

Material Science

Inside the tube, stiffness comes from the wire grade, winding density, and outer cover. We tune those layers so the arm bends smoothly but does not drift under the selected lamp load.

Inner Core

High-carbon steel wire for maximum stiffness and durability

Winding

Precision copper/brass winding for consistent flexibility

Outer Layer

Protective coating resistant to corrosion and wear

Conductivity

Electrical-grade materials for integrated wiring

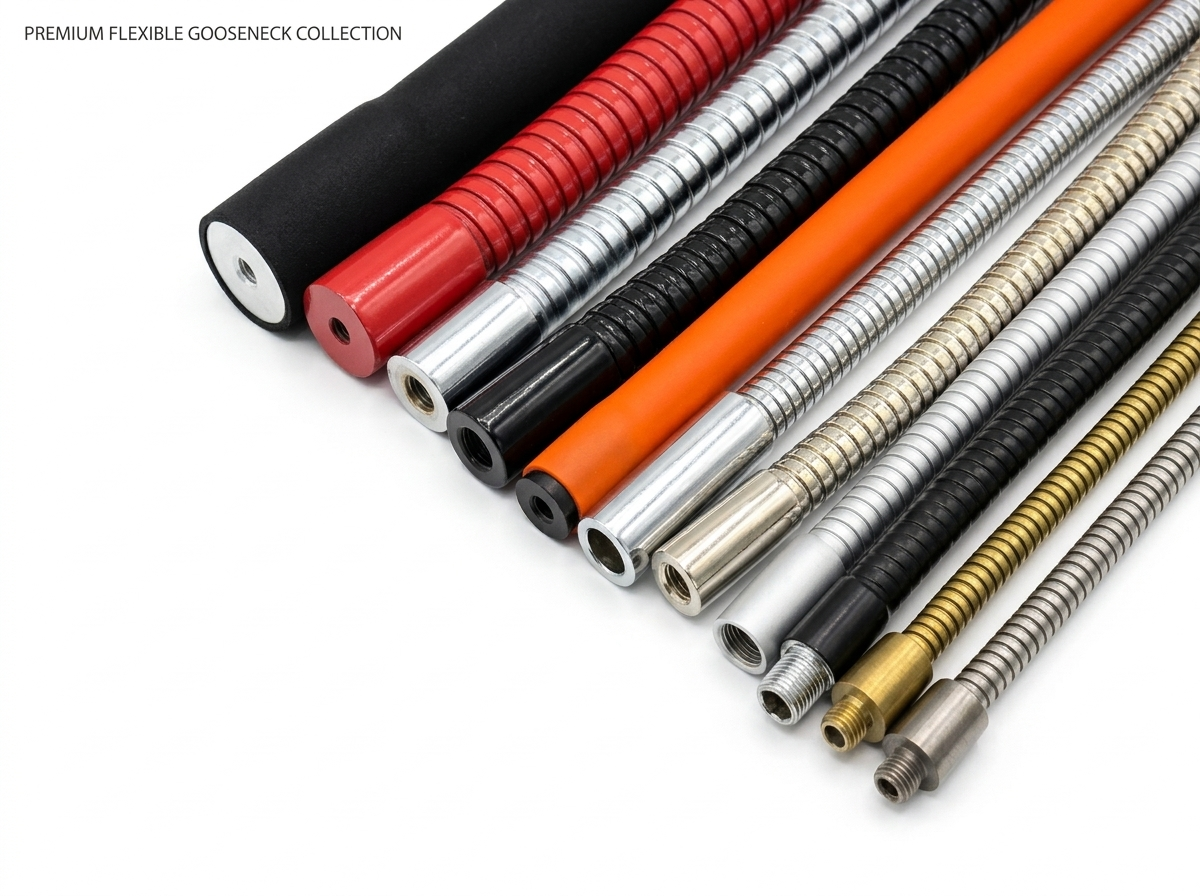

Flexible Gooseneck Metal Tubing

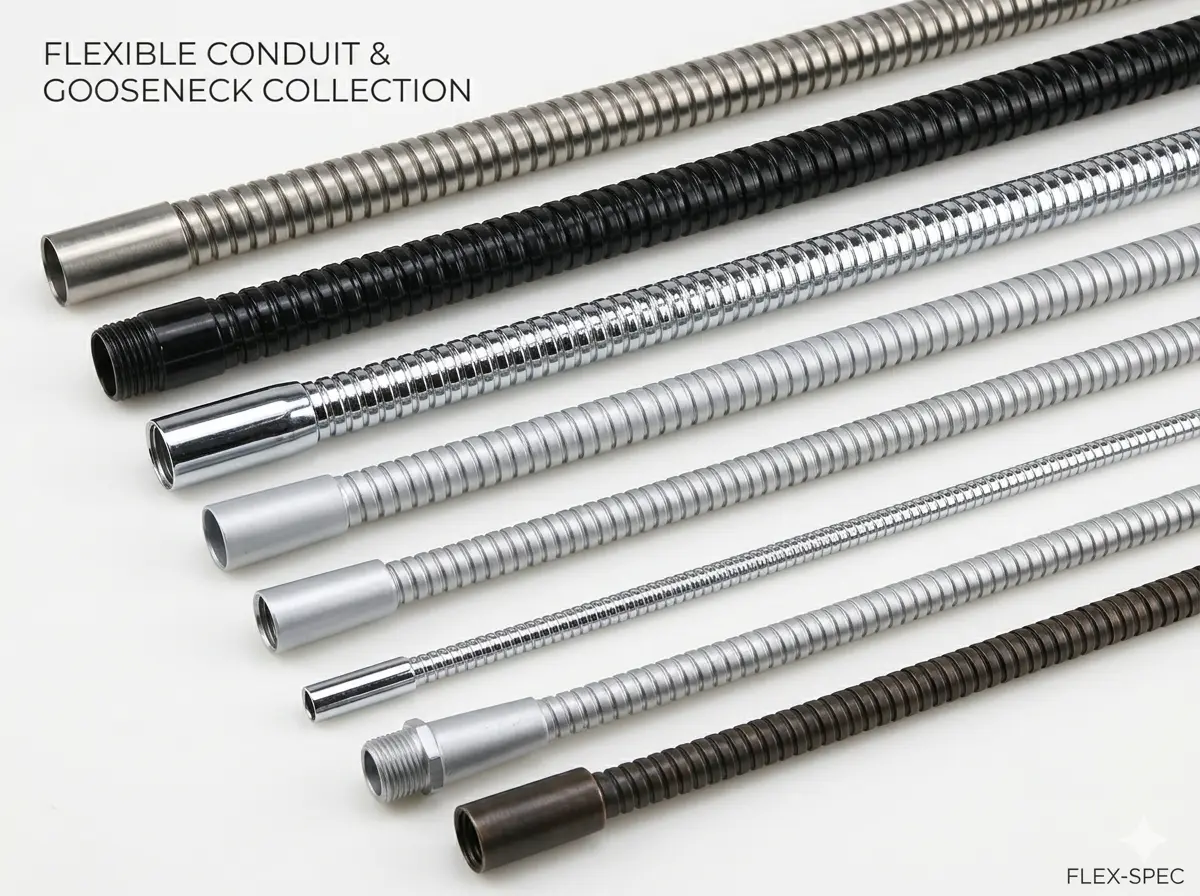

Surface Treatment

Finishing is chosen by environment: cleanability for medical lights, corrosion resistance for workshops, and appearance for visible desk or retail fixtures.
Chrome Plating:
Mirror finish, 500+ hours salt spray resistance
Black Electrophoresis:
Uniform coating, excellent corrosion protection
Powder Coating:
Textured finish, impact and scratch resistant

Silicone Sleeve:
Medical-grade, autoclavable, anti-bacterial

Diameter and Load Guide

The Science of "Stay-Put" Performance

Diameter (OD)
Typical Length
Max Load (Stay-Put)
Recommended Application
Rigidity Grade
8.0mm
200mm
250g
Reading lamps, USB lights
Light
10mm
300mm
500g
Desktop task lights, tablet mounts
Medium
12mm
400mm
1.2kg
Industrial machine lights, studio lamps
Enhanced
15mm
600mm
2.5kg
Medical exam lights, heavy CNC monitoring
Heavy-Duty
18mm
800mm
3.5kg+
Extreme conditions, custom solutions
Ultra Heavy-Duty

How to Choose the Right Diameter

The Physics: The load capacity of a gooseneck arm depends on the torque balance. Torque = Weight × Length. This means if you double the length, you need to double the diameter to maintain the same load capacity.

The Rule: For a 300mm standard length, use this quick reference: 8mm for under 300g, 10mm for 300-600g, 12mm for 600g-1.2kg, 15mm for 1.2kg-2.5kg.

Pro Tip: If your lamp head exceeds 1kg and your gooseneck length exceeds 500mm, we recommend using 14mm or 16mm diameter. For CNC environments with vibration, consider upgrading one size larger for safety margin.

B2B Customization Workflow

Send a drawing, target length, lamp weight, and mounting thread. We will check the basic mechanics before quoting, so the first sample is closer to the final part.

Thread Interfacing

We support all global standard threads: M10, NPT, 1/4"-20, and custom specifications. Ensure compatibility with your lighting fixtures.
  • M10 (metric standard)
  • NPT (US pipe thread)
  • 1/4"-20 (US standard)
  • Custom threads available

OEM/ODM Services

We can start from your drawing or from a lamp head sample. The usual path is diameter selection, end thread confirmation, finish sample, then pilot production before bulk orders.
  • Prototype development
  • Design optimization
  • Bulk production
  • Quality testing

Global Compliance

All materials meet international standards. RoHS, REACH, and CE compliance ensure your products meet global requirements.

  • RoHS compliant
  • REACH certified
  • CE marked
  • Quality documentation

Have a Custom Requirement?

Send us your specifications or drawings. Our engineers will provide a detailed technical proposal within 24 hours.

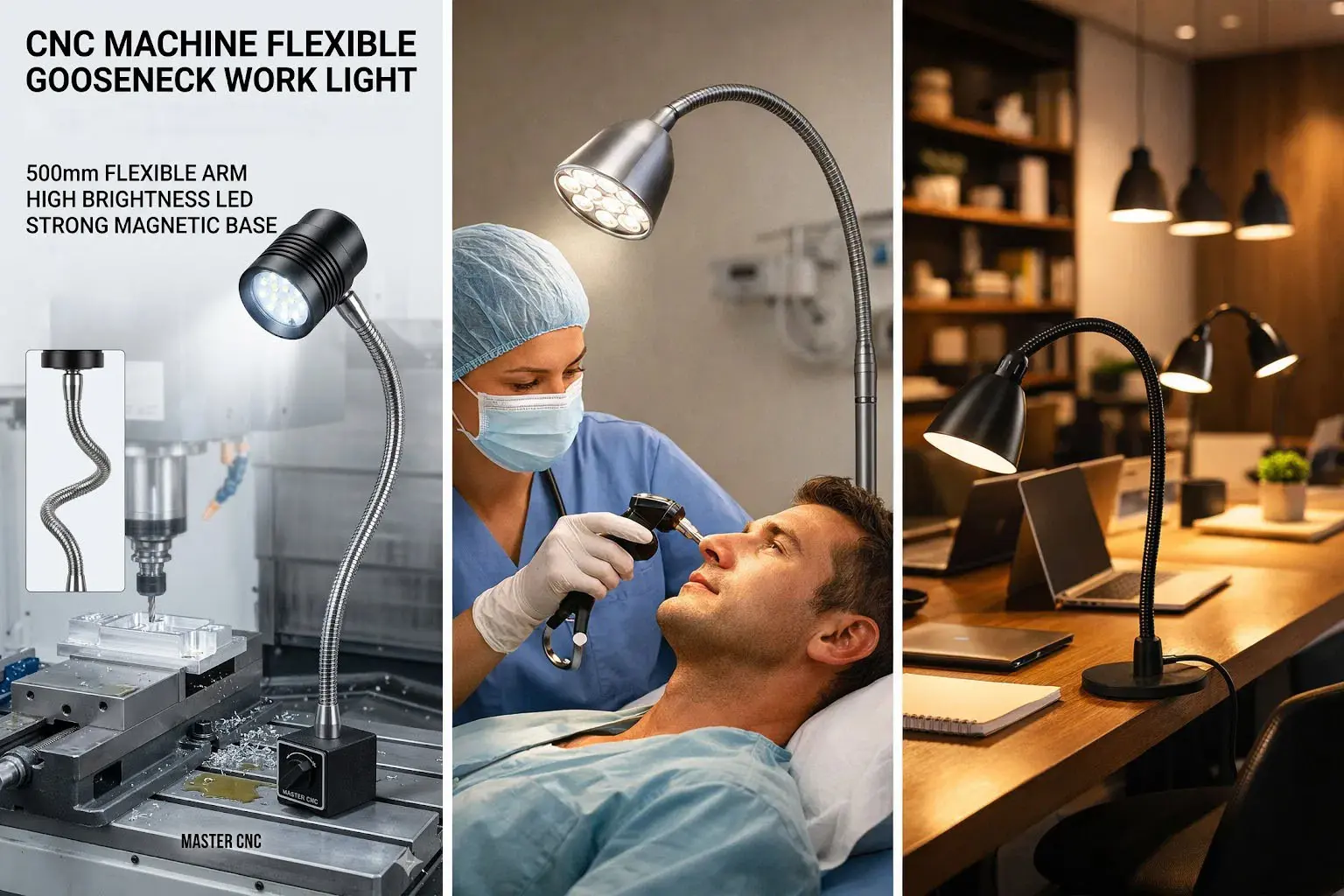

Real-World Applications

Application Scenarios
Technical FAQ

Frequently Asked Questions

Practical answers for buyers and engineers comparing gooseneck lamp arms, finishes, load capacity, wiring, and sample orders.
How do I choose the right gooseneck stiffness for a 1kg lamp head?
For a 1kg lamp head at 300mm length, we recommend 12mm diameter. If your gooseneck length exceeds 500mm, upgrade to 14mm or 15mm. The key is balancing torque: longer arms need larger diameters to maintain the same load capacity.
What are the differences between chrome and black electrophoresis finishes?
Chrome plating is usually chosen when the arm stays visible on the finished lamp. Black electrophoresis gives a matte, more industrial surface and is often a better fit for fixtures used around vibration, dust, or shop-floor handling. Both can be specified for corrosion resistance.
Can gooseneck arms be specified for outdoor lighting fixtures?
Yes. For outdoor lamps we usually review the tube material, finish, exposed joints, cable path, and mounting area together. Powder coating, stainless steel cores, and sealed connection points can be quoted when rain, sunlight, or humidity is part of the application. Contact our team for specific outdoor requirements.
What is your minimum order quantity for custom gooseneck arms?
Our MOQ varies based on customization level. Standard products start at 100 units. For custom specifications, we can discuss smaller quantities. Contact our sales team for specific requirements.
Do you provide technical support for integration?
Absolutely. Our technical team provides full support for thread compatibility, load calculations, and integration guidance. We also offer design consultation for optimal gooseneck selection based on your application.
Can you integrate wiring inside the gooseneck tube?
Yes, we offer integrated wiring solutions for most gooseneck specifications. Our tubes can accommodate various wire gauges and configurations, including multi-conductor cables for LED drivers, dimming controls, and power delivery. All internal wiring is protected by the gooseneck structure and meets electrical safety standards.
Can you provide samples before placing a bulk order?
Absolutely. We offer free samples for standard catalog items (shipping costs apply). For custom specifications, we produce prototype samples at cost, which is credited against your first bulk order. Typical sample lead time is 7-10 business days for standard items, and 2-3 weeks for custom designs.
Get Started

Tell Us What the Lamp Needs to Hold

Share the lamp head weight, target arm length, mounting thread, and expected environment. Our team usually replies within 4 business hours with the first recommendation or questions.

What You Get

Free design consultation
24h fast quotation
Custom manufacturing
Technical drawings review
Sample production
Global shipping

Send Us Your Requirements
