In industrial manufacturing, precision positioning and reliable support systems are non-negotiable requirements. Flexible gooseneck tubing has emerged as a critical component across countless applications, from automotive assembly lines to laboratory equipment and specialized tooling systems. As manufacturers seek solutions that combine durability with precise adjustability, understanding the engineering specifications, performance characteristics, and custom manufacturing possibilities of flexible gooseneck tubing becomes essential for optimal equipment design and operation.

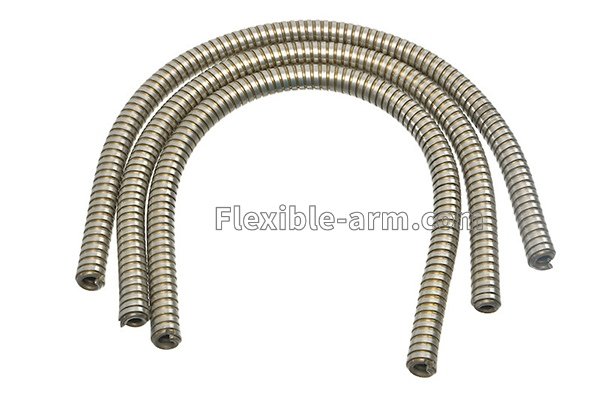

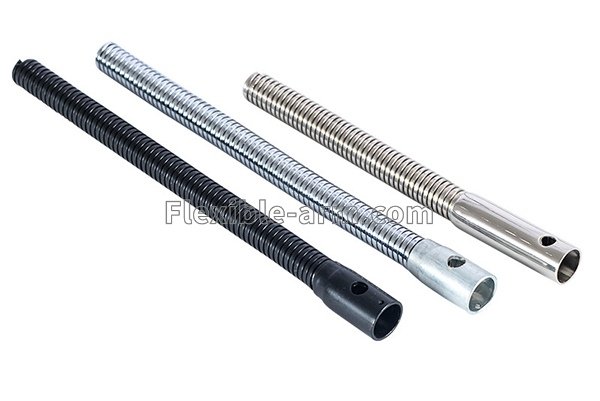

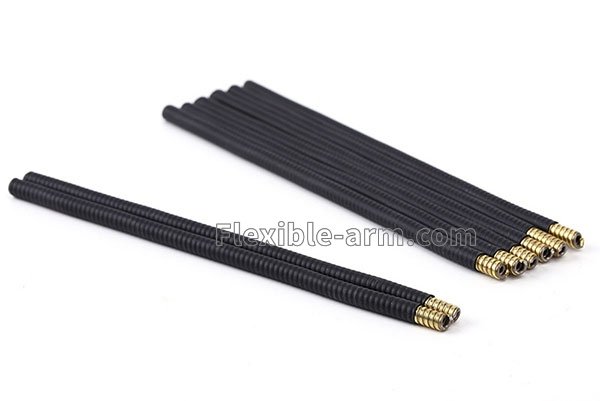

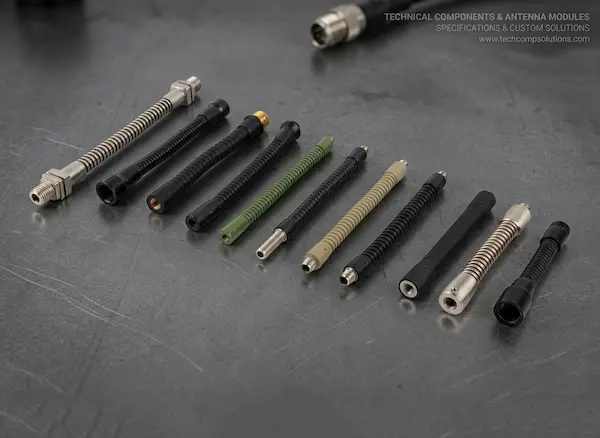

Flexible gooseneck tubing, also known as flex arms, gooseneck pipe, or flexible metal tubing, consists of a helically wound steel spring covered with a protective outer wrapping. This construction creates a tube that maintains its position when bent, providing both flexibility and rigidity where needed. Unlike rigid piping or fixed-position arms, flexible gooseneck tubing offers adjustable positioning without requiring complex mechanical joints or permanent mounting solutions.
The fundamental engineering principle behind flexible gooseneck tubing involves the balance between inner spring tension and outer wrapping resistance. This balance determines the tube's stiffness-to-flexibility ratio, which varies significantly between light-duty and heavy-duty applications. Industrial-grade flexible gooseneck tubing typically features threaded adapters on both ends (commonly 3/8"-24 female threads) for secure attachment to equipment, fixtures, or mounting bases.
Understanding the technical specifications of flexible gooseneck tubing is crucial for selecting the right solution for your industrial application. Performance varies significantly based on construction, materials, and design parameters.
The load-bearing capacity of flexible gooseneck tubing depends primarily on two factors: the tube's construction and its orientation relative to gravity. All flexible gooseneck tubes demonstrate maximum strength in vertical orientations and reduced capacity in horizontal positions. This orientation dependency is critical for industrial applications where equipment may need to support weight at various angles.
| Model | Length | Maximum Horizontal Load | Recommended Applications |
|---|---|---|---|
| Very Light-Duty | 18" | 0.5-1.0 lbs | Precision instruments, small sensors |
| Medium Light-Duty | 18" | 1.0-2.0 lbs | Light fixtures, small cameras |
| Light-Duty | 18" | 2.0-4.0 lbs | Microphones, medium lighting |
| Heavy-Duty | 18" | 4.0-8.0 lbs | Industrial cameras, tool holders |
| Super-Duty | 18" | 8.0-12.0 lbs | Heavy equipment monitoring, robust fixtures |
| Heavy-Duty | 24" | 3.0-6.0 lbs | Extended reach applications |
It's important to note that these values represent maximum loads in the weakest orientation (completely horizontal). In vertical or angled positions, the same tubing can typically support 2-3 times more weight. For critical applications, we recommend consulting with our engineering team to ensure proper specification.

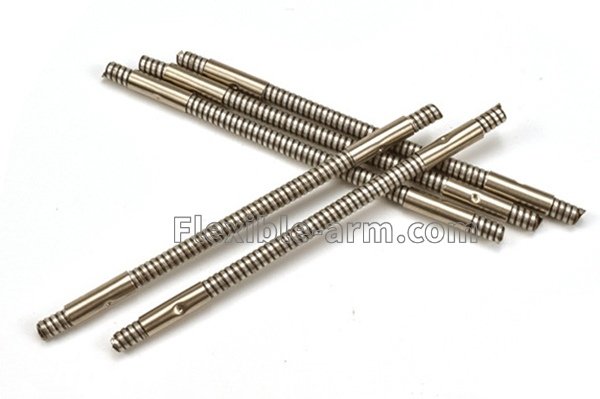

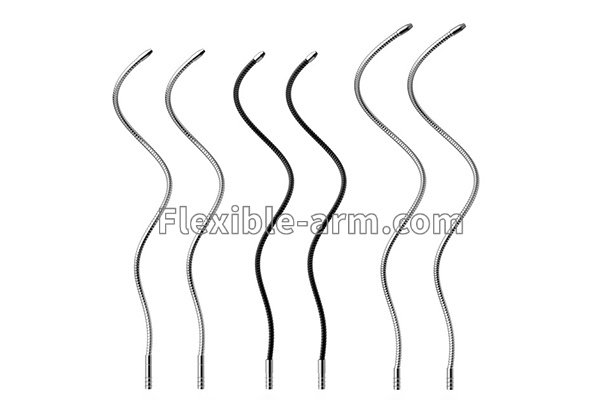

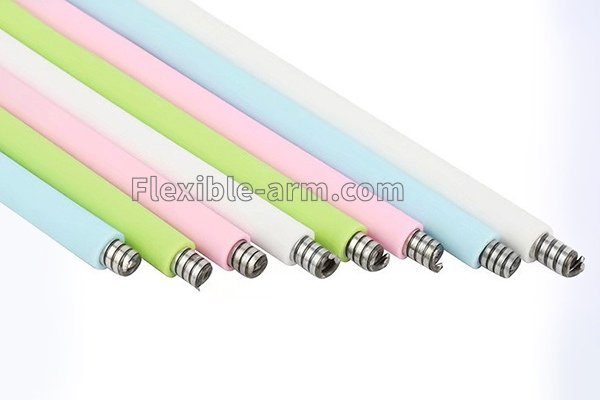

Industrial flexible gooseneck tubing comes in several construction variations and finish options to meet different environmental and functional requirements:

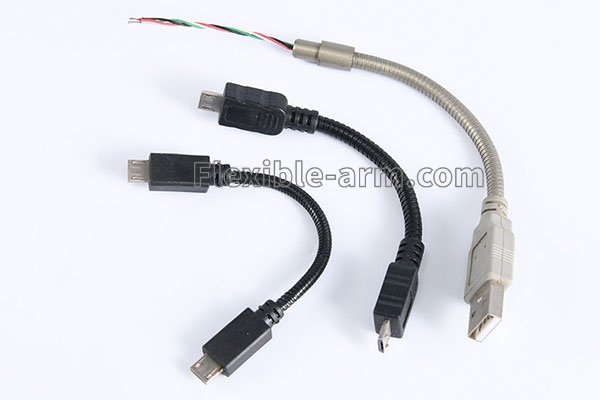

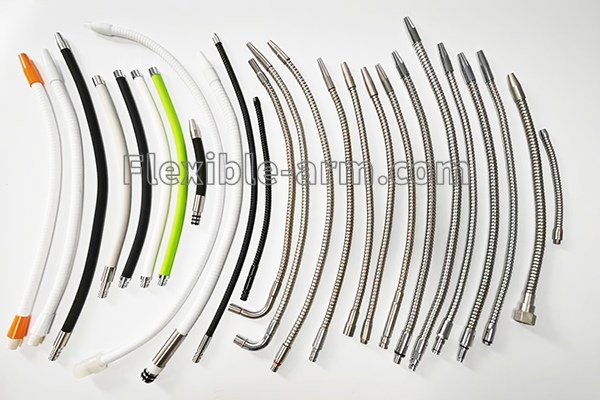

All our flexible gooseneck tubes feature hollow construction with varying inside diameters to accommodate wiring, cables, or fluid transfer in certain applications. The standard 3/8"-24 female threaded adapters on each end include 4mm set screws to secure attachment hardware firmly in place.
Flexible gooseneck tubing serves critical functions across numerous industrial sectors. Its unique combination of adjustability and stability makes it invaluable for applications requiring precise positioning that may need frequent adjustment.

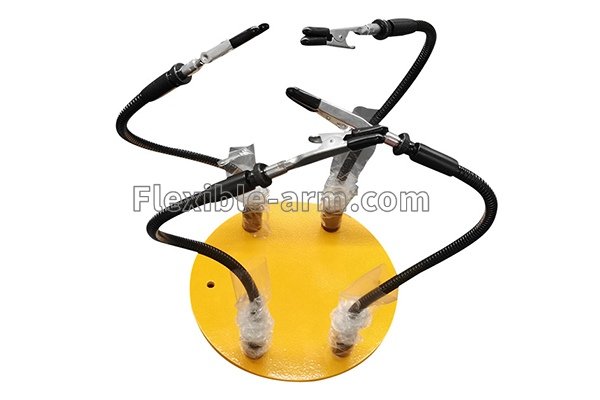

In manufacturing environments, flexible gooseneck tubing provides versatile positioning solutions for:

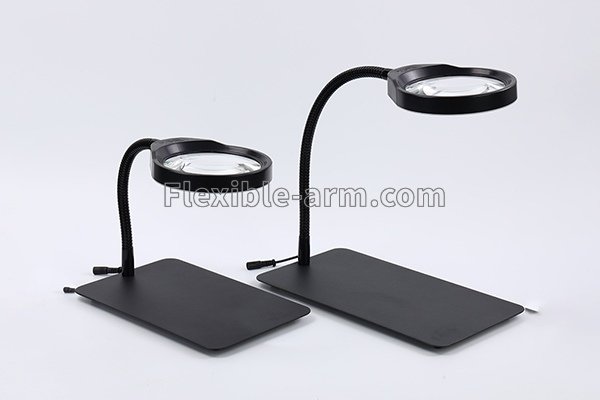

Scientific and research facilities utilize flexible gooseneck tubing for:
Many equipment manufacturers integrate flexible gooseneck tubing into their products for:
As an OEM-focused manufacturer, we recognize that standard solutions don't always meet specialized industrial requirements. Our custom manufacturing capabilities address this need with flexible options for unique applications.
We now offer custom-length heavy-duty flexible gooseneck arms manufactured at our Christiansburg, Virginia facility. Key advantages include:
This capability is particularly valuable for equipment manufacturers who need specific lengths for integration into their products without maintaining large inventories of multiple standard sizes.

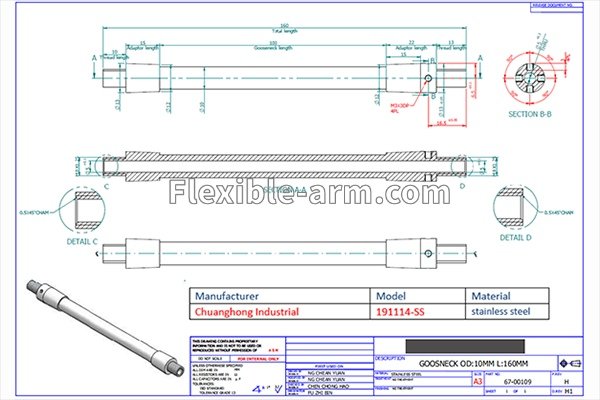

For larger production requirements, we offer completely customized flexible gooseneck designs with:
Minimum order quantities for fully custom designs typically range from 200-500 pieces depending on complexity and manufacturing location. Our engineering team works directly with clients to develop specifications that balance performance requirements with manufacturing efficiency.
For applications requiring extended reach beyond what flexible gooseneck tubing alone can provide, we recommend combining flexible gooseneck arms with our 12" rigid arms. This hybrid approach offers significant advantages:
Each rigid arm includes a 1" threaded stud (P-STUD1) for splicing components together, creating modular systems that can be configured to exact specifications. The hollow construction of both rigid and flexible arms allows for internal routing of wires or cables when needed.
Choosing the right flexible gooseneck tubing requires careful consideration of several factors:
For complex applications or when specifications approach the limits of standard products, we strongly recommend consulting with our technical support team. With years of experience in industrial applications, we can help identify potential issues before they become problems in the field.
All our flexible gooseneck tubing products come with a comprehensive 1-year free replacement warranty, covering defects in materials and workmanship. This warranty reflects our confidence in the quality and durability of our manufacturing processes. Additionally, we offer a 30-day money-back guarantee if products don't meet your expectations.
Our technical support team, available Monday through Friday from 9am to 4pm Eastern time, provides expert assistance with:
For international customers, we ship worldwide from our distribution center in Christiansburg, Virginia, with transparent shipping costs and delivery timelines.
Flexible gooseneck tubing represents more than just a positioning component—it's a critical element in creating adaptable, efficient industrial systems. From standard in-stock models to fully custom manufacturing solutions, the right flexible gooseneck tubing can significantly enhance equipment functionality, operator efficiency, and system reliability.
As manufacturing requirements continue to evolve toward greater flexibility and precision, the importance of properly specified and integrated positioning components will only increase. By understanding the technical specifications, application possibilities, and custom manufacturing options available, industrial engineers and equipment designers can make informed decisions that optimize both performance and value.
Whether you need standard components for immediate implementation or custom solutions for specialized applications, our focus remains on providing industrial-grade flexible gooseneck tubing that meets the rigorous demands of modern manufacturing environments. With Made in USA quality, comprehensive support, and flexible manufacturing capabilities, we're positioned to be your strategic partner for all flexible positioning requirements.
